Training a Neural Netwok to Play Tic-Tac-Toe in C/C++

Materials available at: https://forejune.co/cuda/

Reviews

https://forejune.co/cuda/ai/mlp/mlp.html (Perceptron)

https://forejune.co/cuda/ai/minimax/minimax.html (Minimax)

Multi-Layer Perceptron (MLP) for Tic-Tac-Toe

Many ways to do it



Softmax ~ Activation function

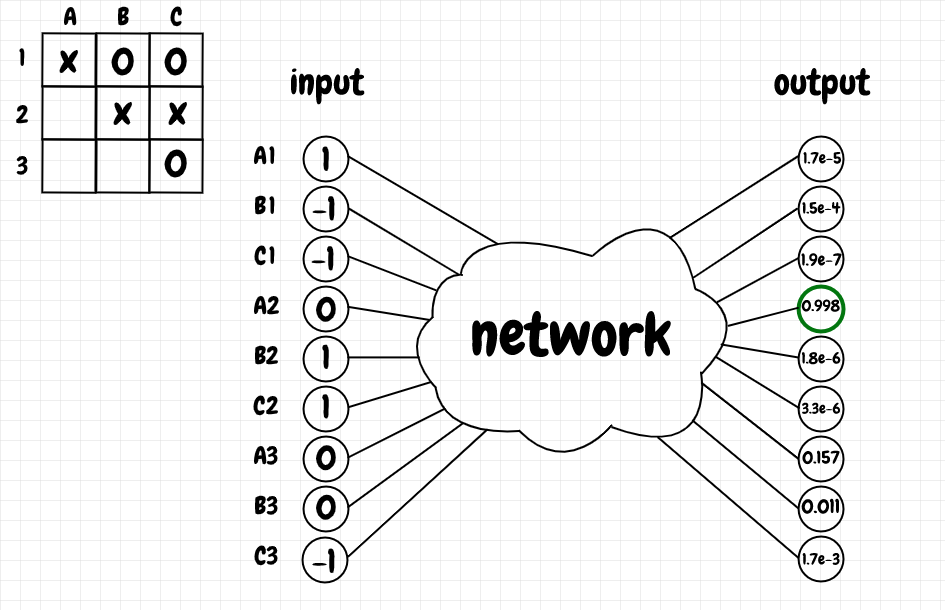

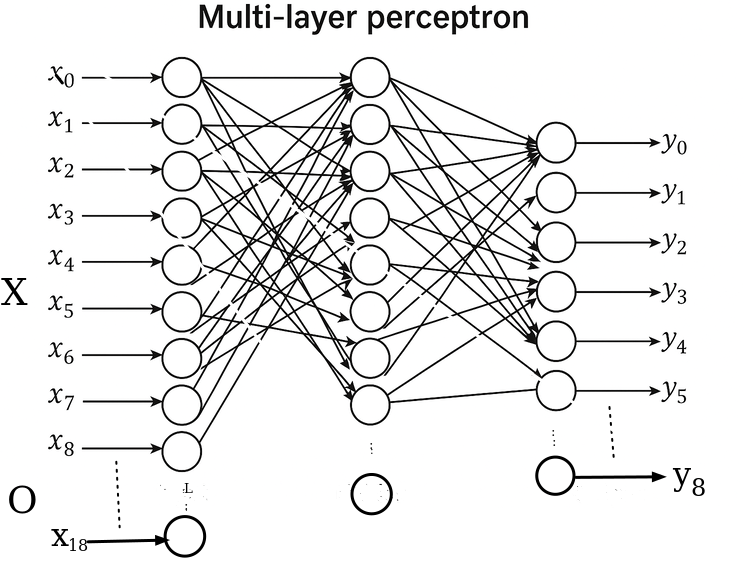

Binary Inputs and Outputs


Inputs:
    x₀ = 1 	(bias)
    x₁  x₂  x₃  x₄ x₅  x₆  x₇  x₈  x₉	  	Player X
    x₁₀ x₁₁ x₁₂ x₁₃ x₁₄ x₁₅ x₁₆ x₁₇ x₁₈ 		Player O
Outputs:
    y₀ y₁  y₂  y₃  y₄ y₅  y₆  y₇  y₈

Example:







Inputs:
	1
	1 0 0 0 1 0 0 0 0	X
	0 1 1 0 0 0 0 0 0	O
Outputs:
	0 0 0 0 0 0 0 0 1








// mlp.h
#ifndef __MLP_H__
#define __MLP_H__
#include <vector>
#include <array>

using namespace std;

const int n1 = 19;  //number of inputs and bias
const int m1 = 27;  //number of hidden nodes and bias
const int K =  9;   //number of outputs
struct database {
  vector<array<double, n1>> inputs;
  vector<array<double, K>> labels;
};

class MLP
{
private:
    double w1[n1][m1];
    double w[n1][m1];
    double wo[m1][K];
    double a[m1];  //linear sum of products of inputs and weights
    double h[m1];  //hidden nodes h[j] = g(a[j])
    double y[K];   //predicted output
    double z[K];   //linear sum of products of weights and hidden nodes
    double eta; //learning rate
public:
    MLP(double learning_rate);
    double g(double x);
    double gd(double x);  //Derivative of sigmoid function
    double* forward(double x[]);  //Forward propagation
    void backward(double yd[], double x[]);  //Backward prop, yd is desired output
    void train(const database &db, int epochs);  //Train the Perceptron
    ~MLP();
    int  saveWeights(char fname[]);
    int  readWeights(char fname[]);
};
#endif

Building a Database for Training

Depth First Search (DFS)

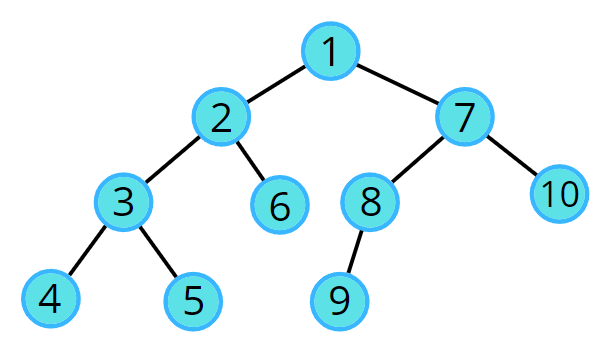

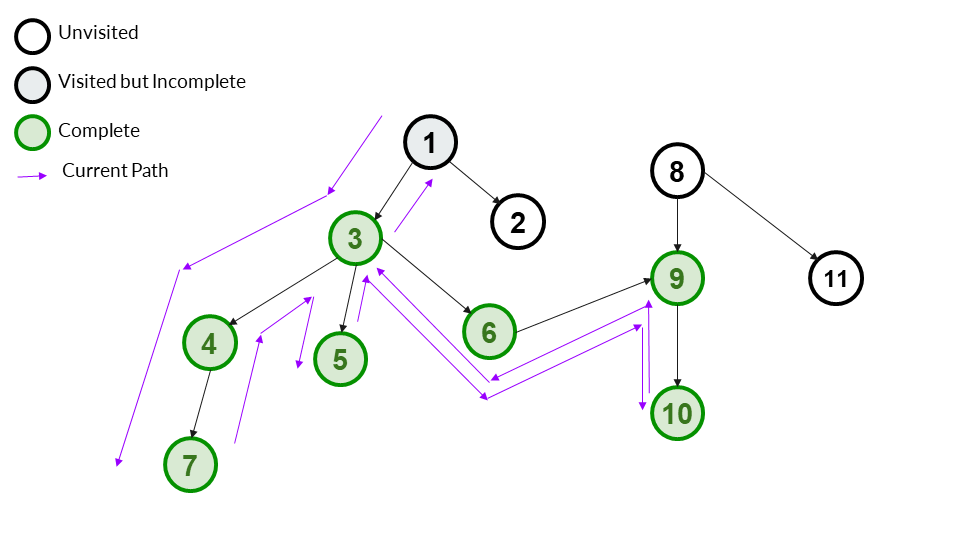

Go as deep as possible, Backtrack

Recursion programming










void buildDatabase(int board[9], Player currentPlayer, database &db)
{
  if ( a_player_has_won( board ) || draw( board ) )
    return;

  if (currentPlayer == ai) {
    int move = minimax( board );
    if ( move >= 0 ) {
      double inputs[n1], labels[K] = {0};
      board2inputs(board, inputs);
      labels[move] = 1;
      addDatabase(db, inputs, labels);
    }
  }
  // scan other empty squares
  for (int i = 0; i < 9; i++){
      if (board[i] == EMPTY) {
        board[i] = currentPlayer;
        buildDatabase(board, otherPlayer, db);  // DFS
        board[i] = EMPTY;   // restore board (backtrack)
      }
  }
}

C/C++ Implementation


// ticmlp.cpp -- training an MLP to play tic-tac-toe
// https://forejune.co/cuda/

#include "minimax.h"
#include "mlp.h"
#include <iostream>

using namespace std;

void addDatabase(database &db, double in[], double targets[])
{
  array<double, n1>tempi;
  array<double, K>tempt;

  for (int i = 0; i < n1; i++)	//n1 = 19, K = 9
    tempi[i] = in[i];
  db.inputs.push_back( tempi );

  for (int i = 0; i < K; i++)
    tempt[i] = targets[i];

  db.labels.push_back( tempt );
}

void board2inputs(MiniMaxT &tic, double inputs[])
{
   inputs[0] = 1;
   for (int i = 0; i < 9; i++) {
	inputs[i+1] = inputs[i+10] = 0;
	if (tic.board[i] == X)
	  inputs[i+1] = 1;
	else if (tic.board[i] == O)
	  inputs[i+10] = 1;
    }
}

void buildDatabase(MiniMaxT & tic, Player currentPlayer, database &db)
{
  if ( tic.isWinning( X ) || tic.isWinning( O ) )
    return;
  if ( !tic.emptyCell() )
    return;		//no more empty space on board


  if (currentPlayer == X) {
    int move = tic.minimax(true, 0).move;
    if ( move >= 0 ) {
      double inputs[n1], labels[K] = {0};
      board2inputs(tic, inputs);
      labels[move] = 1;
      addDatabase(db, inputs, labels);
    }
  }

  // scan other empty squares
  for (int i = 0; i < 9; i++){
      if (tic.board[i] == EMPTY) {
	tic.board[i] = currentPlayer;
	Player nextPlayer = (currentPlayer == X) ? O : X;
        buildDatabase(tic, nextPlayer, db);  //~ DFS
	tic.board[i] = EMPTY;	// restore board (backtracking)
      }
  }
}

int out2move(double out[K])
{
  double max = -1, move = -1;
  for (int i = 0; i < K; i++) {
    if (out[i] > max) {
      max = out[i];
      move = i;
    }
  }

  return move;
}


int main()
{

   database db;
   Player ai = X;
   Player opp = O;
   Player turn;

   MiniMaxT tic(ai, opp);
   buildDatabase(tic, ai, db);

   cout << "Training the MLP ..." << endl;
   MLP mlp(0.05);
   int iterations =  30;		//number of epochs for training

   mlp.train(db, iterations);

   mlp.saveWeights( (char *) "ticWeights.txt" );

   double *outs;
   double ins[n1];

   tic.resetBoard();
   cout << "After training" << endl;

   turn = ai;
   while ( true ) {
    if ( tic.isWinning( ai ) ) {
        cout << "AI wins!\n";
        break;
    } else if ( tic.isWinning( opp ) ) {
        cout << "You win!\n";
        break;
    } else if ( !tic.emptyCell() ) {
        cout << "Draw!\n";
        break;
    }
    int move;	int neuralMove;
    if (turn == ai) {
      move =  tic.minimax(true, 0).move;	//move from minimax
      board2inputs(tic, ins);
      outs = mlp.forward( ins );
      neuralMove = out2move( outs );		//move from MLP
      tic.board[neuralMove] = ai;
      cout << "AI plays " << neuralMove << "(" << move << ")" <<  endl;
      turn = opp;
    } else {            // opponent's turn
      for ( ; ; ){
        cout << "Your move (0-8): ";
        cin >> move;
        if ( move < 0 || move > 8 || tic.board[move] != EMPTY) {
          cout << "Invalid move; try again: \n";
          continue;
        } else
          break;
      }
      tic.board[move] = opp;
      turn = ai;
    }  //else
    tic.printBoard();
  }  //while true

  return 0;
}

Using a GUI
