Training a Decision Transformer to Play
Pong Game in C/C++

Materials available at: http://forejune.co/cuda/

Recap

  • Training a GPT Transformer to Play Tic-Tac-Toe

  • Pong Game

    • Decision Transformer

  • GPT (Decoder-only) Transformer models a sequence of tokens.
  • Decision Transformer models a sequence of (return, state, action) triples

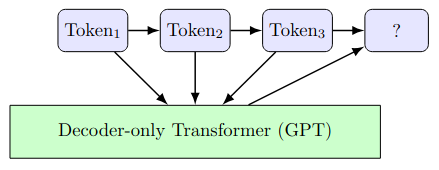

    GPT (Decoder-only) Predicts Next Token

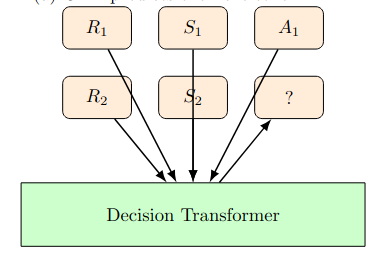

    Decision Transformer Predicts the Next Action
    • 	The Pong environment generates the next state, while the Decision Transformer generates the action.

	The key assumption is that history always ends with an ACTION query position.
	In other words, the last timestep in history has:

	RTG   STATE   ACTION_TOKEN

	so P.back() is the model's prediction for the action.
    Return-To-Go

  • Return-To-Go (RTG): The future reward remaining from the current timestep onward.

  • RTG is the sum of all future rewards from time step t until the episode terminates.

  • Let T = terminal time step of an episode
    (the total trajectory length is T + 1)
    rk = reward at time step k

  • Return-To-Go at time step t:

  • Return-To-Go at time step t+1:

  • Recursive Formulas:

  • Inference Update Rule
    • Environment yields a reward rt
    • The update RTG for the next time step by subtracting the reward

  • Boundary Condition
    When the episode ends, no more reward to sum:

      Theoretically only!

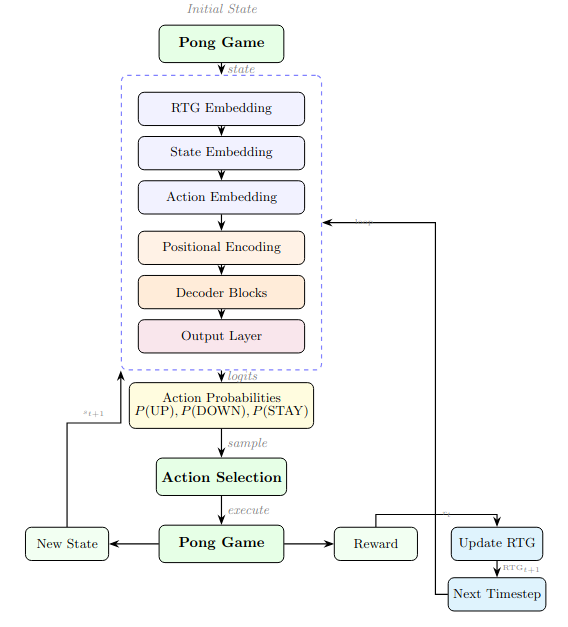

    • Decision Transformer for Pong


	struct PongStruct
	{
    		double returnToGo;  // RTG

    		double ballX;
    		double ballY;

  		double ballDX;
    		double ballDY;

    		double leftY;       // left paddle position
    		double rightY;

    		int action;        // UP, DOWN, STAY
	};

    C/C++ Implementation

    1. Create header pong.h

    #ifndef _PONG_H_
#define _PONG_H_

// Totally seven different tokens (we only need action tokens)
const int UP = 0;
const int DOWN = 1;
const int STAY = 2;
const int EOS = 3;	    // End of stream
// Add special tokens for Decision Transformer
const int RTG_TOKEN = 4;    // Not used for embedding lookup
const int STATE_TOKEN = 5;  // Not used for embedding lookup
const int ACTION_TOKEN = 6; // Not used for embedding lookup

const int ACTION_OFFSET = 1;  // Actions are stored at indices 1, 2, 3
			      // index 0 can store -1
struct PongStruct
{
    double returnToGo;

    double ballX;
    double ballY;

    double ballDX;
    double ballDY;

    double leftY;	// left paddle position
    double rightY;

    int action;        // UP, DOWN, STAY
};
#endif

    2. Modify Embedding Class

    class Embedding
{
protected:
    int nTokens;        // number of words
    int dim;            // embedding dimension
    matrixd em_matrix;  // embedding matrix;
    // New members for Decision Transformer
    matrixd W_rtg;      // 1 x dim - projects scalar RTG to embedding dim
    matrixd W_state;    // 6 x dim - projects 6 state dims to embedding dim

public:
    Embedding(int sequence_length, int embeddingDimension);
    // create embedding matrix with tokenIDs
    matrixd embed(const vector<int>& tokenIDs);
    int get_embedDim() const;
    int get_nTokens() const;
    void backProp(const vector<int>& tokenIDs, const matrixd& dL_dX,
                         double eta);
    // Added for DecisionTransformer
    matrixd embed(const vector<PongStruct>& seq);
    void backProp(const vector<PongStruct>& tokens, const matrixd& dL_dX,
                         double eta);
    vector project_rtg(const double returnToGo);
    vector project_state(const PongStruct& token);
    void saveWeights(FILE *fp);
    void readWeights(FILE *fp);
};

Embedding::Embedding(int sequence_length, int embeddingDimension)
{
  nTokens = sequence_length;
  dim = embeddingDimension;
  initMatrix(em_matrix, nTokens, dim);

   // Initialize continuous value projections
   initMatrix(W_rtg, 1, dim);      // 1 x dim
   initMatrix(W_state, 6, dim);    // 6 x dim
}

// create embedding matrix with a sequence of PongStruct (trajectory)
matrixd Embedding::embed(const vector& seq) {
    matrixd embeddings;
    embeddings.reserve(seq.size()); //set capacity of of embedding vector
    for (int i = 0; i < seq.size(); i++) {
        embeddings.push_back(project_rtg(seq[i].returnToGo));
        embeddings.push_back(project_state(seq[i]));
        embeddings.push_back(em_matrix[seq[i].action + ACTION_OFFSET]);
    }

    return embeddings;
}

// Project a scalar (return-to-go) to embedding dimension
vector<double> Embedding::project_rtg(double returnToGo)
{
   vector<double> result(dim, 0.0);

   // result = W_rtg^T x returnToGo
   // W_rtg : 1xdim, input: 1x1, result: dim x 1
   for (int j = 0; j < dim; j++)
     result[j] = returnToGo * W_rtg[0][j];

   return result;
}

// Project state vector to embedding dimension
vector<double> Embedding::project_state(const PongStruct& pong)
{
   // Build state vector (6 dimensions)
   vector<double> pong_state = {
      pong.ballX,  pong.ballY,
      pong.ballDX, pong.ballDY,
      pong.leftY,  pong.rightY
    };

    int n = pong_state.size();
    // result = W_state^T * pong_state
    // W_state: 6 x dim, pong_state: 6 x 1, result: dim x 1
    vector<double> result(dim, 0.0);

    for (int j = 0; j < dim; j++) {
        result[j] = 0.0;
        for (int i = 0; i < n; i++) {
            result[j] += pong_state[i] * W_state[i][j];
        }
    }

    return result;
}

void Embedding::backProp(const vector<PongStruct>& pongs,
                         const matrixd& dL_dX, double eta)
{
    // Backward pass for PongStruct
    int nt = pongs.size();

    for (int t = 0; t < nt; t++) {
      int rtg_pos = 3*t;        // RTG embedding position
      int state_pos = 3*t + 1;  // State embedding position
      int action_pos = 3*t + 2; // Action embedding position

       // Gradient for RTG projection weights
       vector<double> dL_drtg = dL_dX[rtg_pos];  // size: dim
       // dL/dW_rtg = returnToGo^T * dL/d(rtg_embedding)
       // Since input is scalar: dL/dW_rtg[0][j] = returnToGo * dL_drtg[j]
       for (int j = 0; j < dim; j++)
         W_rtg[0][j] -= eta * pongs[t].returnToGo * dL_drtg[j];

       // Gradient for state projection weights
        vector<double> dL_dstate = dL_dX[state_pos];  // dim

        vector<double> pong_state = {pongs[t].ballX, pongs[t].ballY,
                pongs[t].ballDX, pongs[t].ballDY,
                pongs[t].leftY,  pongs[t].rightY
            };

        // dL/dW_state = pong_state^T * dL/d(state_embedding)
        for (int i = 0; i < 6; i++)
          for (int j = 0; j < dim; j++)
                    W_state[i][j] -= eta * pong_state[i] * dL_dstate[j];

        // Gradient for action embedding (discrete lookup)
         int action_token = pongs[t].action + ACTION_OFFSET;
         vector<double> dL_daction = dL_dX[action_pos];  // dim

         // Update the specific row in em_matrix
         for (int j = 0; j < dim; j++)
            em_matrix[action_token][j] -= eta * dL_daction[j];

    }
}

    3. Extend GPT Transformer

    class DecisionTransformer : public MiniGPT
{
public:
    DecisionTransformer(int vocab_size, int seq_len, int dModel,
                       int nHeads, int d_ff, int nLayers);

    // Forward pass for Decision Transformer
    matrixd forward(const vector& trajectory);

    // Training step for Decision Transformer
    double trainStep(const vector& trajectory, double eta);

    // Predict single action
    int predictAction(const vector& history);
};

// seq_len = 3 x number_of_timesteps
DecisionTransformer::DecisionTransformer(int vocab_size, int seq_len, int dModel,
                       int nHeads, int d_ff, int nLayers)
        : MiniGPT(vocab_size, seq_len, dModel, nHeads, d_ff, nLayers)
{
}

// Forward pass for Decision Transformer
matrixd DecisionTransformer::forward(const vector<PongStruct>& trajectory)
{					// nt = trajectory.size()
   matrixd X = embed.embed(trajectory); // 3*nt x dModel
					// (rtg,state,action) per time step
   X = pe.addPE(X);

   for (int i = 0; i < layers.size(); i++)
       X = layers[i].forward(X);

   matrixd P = output.forward(X);  // 3*nt x vocab_size

   return P;
}

double DecisionTransformer::trainStep(const vector<PongStruct>& trajectory, double eta)
{
    int nt = trajectory.size();
    int total_tokens = nt * 3;  // 3 tokens per timestep (RTG, State, Action)

    /*
      Build target sequence:
        1. The model predicts the next token given previous tokens.
        2. We only care about action predictions.
        3. target[i] = token[i+1] for positions where token[i+1] is an action.
        4. target[i] = -1 for positions where we ignore the prediction
    */
    vector<int> target(total_tokens, -1);  // -1 => ignore
					   //
    for (int t = 0; t < nt; t++) {
        int action_pos = t * 3 + 2;  // action position in triplet (RTG, state, action)

        // Target for position (action_pos - 1) is this action
        // because we predict action given RTG and state,
	// so target action is the current action
        if (action_pos > 0  && action_pos - 1 < total_tokens)
            target[action_pos - 1] = trajectory[t].action;  // t*3 + 1

    }

    for (int i = 0; i < target.size(); i++) {
       if (target[i] >= vocab_size) {
            cout << "ERROR: target[" << i << "] = " << target[i]
                 << " exceeds vocab_size " << vocab_size << endl;
            exit(1);
       }
    }

    // Embedding forward
    matrixd X = embed.embed(trajectory);

    // Positional encoding
    X = pe.addPE(X);

    // Transformer forward
    vector<matrixd> cache;

    for (int i = 0; i < layers.size(); i++) {
        cache.push_back(X);   // Cache input for backward
        X = layers[i].forward(X);
    }

    // Output forward
    matrixd P = output.forward(X);

    // Loss computation
    double loss = crossEntropy(P, target);

    // Output backward
    matrixd dL_dX = output.backward(X, P, target, eta);

    // Transformer backward
    for (int i = layers.size() - 1; i >= 0; i--) {
        dL_dX = layers[i].backward(cache[i], dL_dX, eta);
    }

    // Embedding backward
    embed.backProp(trajectory, dL_dX, eta);

    return loss;
}

int DecisionTransformer::predictAction(const vector<PongStruct>& history)
{
    matrixd P = forward(history);
    int last = P.size() - 1;

    // Define the mapping from our action enum to the model's logit index
    const int actionTokens[3] = {UP, DOWN, STAY};
    int bestAction = UP;
    double bestValue = -1e9;

    for (int i = 0; i < 3; i++ ) // action is 0, 1, 2
    {
	int action = actionTokens[i];
        int logitIndex = action;
        if (P[last][logitIndex] > bestValue)
        {
            bestValue = P[last][logitIndex];
            bestAction = action; // Store the actual enum (0, 1, or 2)
        }
    }

    return bestAction; // Returns UP(0), DOWN(1), or STAY(2)
}

    Collecting Data

     /*
 * pongt.cpp : Gathering data, saving in trajectories.txt
 * http://forejune.co/cuda
 */

#include <GL/gl.h>
#include <GL/glut.h>
#include <string>
#include <vector>
#include <iostream>
#include "pong.h"

using namespace std;

// Game variables
double ballX = 0.0;	// horizontal position of ball
double ballY = 0.0;	// vertical position of ball

double ballDX = 0.15;	// change in X of ball
double ballDY = 0.10;	// change in Y of ball

double leftY = 0.0;	// left paddle position
double rightY = 0.0;	// rifht paddle position

int   action = STAY;

const double pW  = 0.5;	// paddle width
const double pH = 3.0;   // paddle height

double scoreLeft  = 0;
double scoreRight = 0;
double returnToGo = 11;
double reward = 0;
int maxTimeSteps = 100;	   // maximum number of time steips in a trajectory
int maxTrajectories = 400; // maximum number of trajectories to be collected
int nT = 0;	// number of trajectories recorded
FILE *fp = NULL;

bool pause = false;

vector<PongStruct> trajectory;

void drawPaddle(double x, double y)
{
  // (x, y) is the lower left vertex coordinates
  glRectf(x, y, x+pW, y+pH);
}

// draw String
void drawString(double x, double y, const string &s)
{
    glRasterPos2f(x, y);

    for (int i = 0; i < s.length(); i++)
        glutBitmapCharacter(GLUT_BITMAP_HELVETICA_18, s[i]);
}

void drawBall(double x, double y)
{
  glPushMatrix();
  glTranslatef(x, y, 0);
  glutSolidSphere(0.5, 16, 16);
  glPopMatrix();
}

// a trajectory at one time step: {returnToGo, ballX, ballY, ballDX, ballDY, leftY, rightY, action}
void saveTrajectory()
{
  for (const auto &pong : trajectory){
    fprintf(fp, "\n%6.3f ", pong.returnToGo);
    fprintf(fp, "%6.3f %6.3f %6.3f %6.3f ", pong.ballX, pong.ballY, pong.ballDX, pong.ballDY);
    fprintf(fp, "%6.3f %6.3f %4d ", pong.leftY, pong.rightY, pong.action);
  }
  fprintf(fp, "\n%6.3f ", -101.0);   // signifies end of trajectory
  ++nT;
  if ( nT >= maxTrajectories ) {
    fclose( fp );
    cout << "Saved " << nT << " trajectories" << endl;
    exit(0);
  }
}

// Initialization
void init(void)
{
    glClearColor(1, 1, 1, 0);

    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluOrtho2D(-10, 10, -10, 10);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    if ( (fp = fopen("trajectories.txt", "wt")) == NULL ) {
      cout << "Error opening file trajectories.txt" << endl;
      exit ( 1 );
    }
}

// Draw scene
void display(void)
{
    glClear(GL_COLOR_BUFFER_BIT);

    double x, y;		//paddle lower left corner
    glColor3f(1, 0, 0); //red color

    // Left paddle
    x = -9.0;
    y = leftY - pH/2;
    drawPaddle(x, y);

    // Right paddle
    x = 8.5;
    y = rightY - pH / 2;
    drawPaddle(x, y);

    // Ball
    glColor3f(0, 1, 0);
    drawBall(ballX, ballY);

    // Score
    char str[40];
    sprintf(str,"%d   :   %d", (int)scoreLeft, (int)scoreRight);
    glColor3f(0, 0, 0);  // black color
    drawString(-1.0, 9.0, str);

    glutSwapBuffers();
}

void animate()
{
    if (pause) return;
    if ( nT >= maxTrajectories ) return;

    // Record the current state s(t) and compute r(t)
    // action will be determined below based on this current state.
    // We need to store the state before moving.

    // Expert decides action (based on current state)
    if (ballY > leftY)
        action = UP;
    else
        action = DOWN; // Expert always moves, no STAY needed for data collection

    // Execute the action (move left paddle)
    if (action == UP) leftY += 0.08;
    else leftY -= 0.08;

    // Keep left paddle inside the screen
    if (leftY > 10.0 - pH / 2) leftY = 10.0 - pH / 2;
    if (leftY < -10.0 + pH / 2) leftY = -10.0 + pH / 2;

    //  Push the current triplet (rtg(t), state(t), action(t)
    PongStruct current_triplet = {
        returnToGo,         // rtg at time t
        ballX,              // state at time t (before moving ball)
        ballY,              // state at time t
        ballDX,             // state at time t
        ballDY,             // state at time t
        leftY,              // state at time t (after paddle move)
			    //  paddle move is part of the environment transition
        rightY,             // state at time t
        action              // action at time t
    };
    trajectory.push_back(current_triplet);
    if (trajectory.size() > maxTimeSteps)
        trajectory.erase(trajectory.begin());

    // Move the right paddle and the ball
    if (ballY > rightY) rightY += 0.08;
    else rightY -= 0.08;
    if (rightY > 10.0 - pH / 2) rightY = 10.0 - pH / 2;
    if (rightY < -10.0 + pH / 2) rightY = -10.0 + pH / 2;

    // Move the ball
    ballX += ballDX;
    ballY += ballDY;

    // Collisions
    if (ballY > 9.5) { ballY = 9.5; ballDY = -ballDY; }
    else if (ballY < -9.5) { ballY = -9.5; ballDY = -ballDY; }

    if (ballX <= -8.25 && ballY >= leftY - pH/2 && ballY <= leftY + pH/2 && ballDX < 0)
        ballDX = -ballDX;
    else if (ballX >= 8.25 && ballY >= rightY - pH/2 && ballY <= rightY + pH/2 && ballDX > 0)
        ballDX = -ballDX;

    //  Determine reward, r(t) and handle goals
    reward = 0.0;
    bool scored = false;

    if (ballX < -10) {
        scoreRight++;
        reward = -1.0;
        scored = true;
    } else if (ballX > 10) {
        scoreLeft++;
        reward = +1.0;
        scored = true;
    }

    // Update rtg for the next timestep: rtg(t+1)
    returnToGo -= reward; // rtg{t+1} = rtg(t) - r(t)

    // Episode reset (if goal scored)
    if (scored) {
        PongStruct terminal_step = {
            returnToGo,  // This is now rtg(t+1) = rtg(t) - r(t),
            ballX,
            ballY,
            ballDX,
            ballDY,
            leftY,
            rightY,
            action      // Action that led to this terminal state
        };
        trajectory.push_back(terminal_step);
        if (trajectory.size() > maxTimeSteps)
            trajectory.erase(trajectory.begin());

        // Save the complete trajectory to file
        saveTrajectory();

        // Reset ball and clear trajectory for the new episode
        ballX = 0; ballY = 0;
        ballDX = -ballDX;

        // Reset rtg for the new episode
        returnToGo = 11.0;

        // Clear trajectory and push the new initial state (with STAY action)
        trajectory.clear();
        PongStruct initial_step = {
            returnToGo,
            ballX, ballY, ballDX, ballDY,
            leftY, rightY,
            STAY  // No action taken yet for the new episode start
        };
        trajectory.push_back(initial_step);
    }

    glutPostRedisplay();
}

// Keyboard control
void keyboard(unsigned char key,int x, int y)
{
    switch(key)
    {
        case 27:	// ESC
	    if ( fp != NULL ) {
	      fclose( fp );
	      cout << "File closed! Saved " << nT << " trajectories" << endl;
	    }
            exit(0);
	    break;
	case 'p':	// toggles pause
	    pause = pause ? false : true;
	    break;
    }
}

void specialKey(int key, int x, int y)
{
    switch(key)
    {
	case GLUT_KEY_UP:
            leftY += 0.5;
            break;

        case GLUT_KEY_DOWN:
            leftY -= 0.5;
            break;
    }
}

// Visibility callback
void timerHandle ( int value )
{
   animate();
   glutPostRedisplay();
   // call timerHandle 25 ms later, 0 is passed to timerHandle, not used here
   glutTimerFunc (25, timerHandle, 0);
}

void visHandle( int visible )
{
   if (visible == GLUT_VISIBLE)
      timerHandle ( 0 );
   else
      ;
}

int main(int argc, char *argv[])
{
    glutInit(&argc, argv);

    glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB);

    glutInitWindowSize(500,500);
    glutCreateWindow("Pong Game");

    glutDisplayFunc(display);
    glutVisibilityFunc(visHandle);
    glutKeyboardFunc(keyboard);
    glutSpecialFunc(specialKey);

    init();

    glutMainLoop();

    return 0;
}

    Training the Transformer

    // testMain.cpp : Training DecisionTransformer
// http://forejune.co/cuda/

#include "util.h"
#include "transGpt.h"
#include "decision.h"

using namespace std;

struct Database {
    vector<vector<PongStruct>> sequences;
};

void addSample(Database &db, const vector<PongStruct> &seq)
{
    if (seq.size() < 2)
        return;

    db.sequences.push_back(seq);
}

int buildDatabase(Database &db, char fname[], const int maxT)
{
  FILE *fp;

  if ( (fp = fopen(fname, "rt")) == NULL ) {
    printf("\nError opening file %s\n", fname);
    return -1;
  }
  double returnToGo = 0, ballX, ballY, ballDX, ballDY, leftY, rightY;
  int action;
  int n = 0;
  while ( n < maxT ){
    vector<PongStruct> seq;
    while ( true ) {
      fscanf(fp, "%lf", &returnToGo);
      if ( returnToGo < -100 )
         break;
      fscanf(fp, "%lf", &ballX);
      fscanf(fp, "%lf", &ballY);
      fscanf(fp, "%lf", &ballDX);
      fscanf(fp, "%lf", &ballDY);
      fscanf(fp, "%lf", &leftY);
      fscanf(fp, "%lf", &rightY);
      fscanf(fp, "%d", &action);
      seq.push_back(PongStruct (returnToGo, ballX, ballY, ballDX, ballDY,
                              leftY, rightY, action));
    }
    addSample(db, seq);
    n++;
  }

  if ( fp != NULL )
    fclose( fp );

  return 1;
}

void printSeq (vector<PongStruct> seq)
{
   for (const auto &p : seq)
      printf("\n%6.3f %6.3f %6.3f %6.3f %6.3f %6.3f %6.3f %4d",
	     p.returnToGo, p.ballX, p.ballY, p.ballDX, p.ballDY,
	     p.leftY, p.rightY, p.action);
}

int main(int argc, char *argv[])
{
   if ( argc < 2) {
      cout << "Usage: " << argv[0] << " # of trajectories " << endl;
      return 1;
   }
   int maxT = atoi (argv[1]);  // maximum number of trajectories to read
   if ( maxT < 0 )
      maxT = 10;
   else if ( maxT > 150 )
      maxT = 150;

   // Build  database
   Database db;
   char fname[] = "trajectories.txt";
   if ( buildDatabase(db, fname, maxT) < 0 ){
     cout << "build database failed!" << endl;
     return 1;
   }

   cout << "Number of training sequences: " << db.sequences.size() << endl;

   // Model
   int vocab_size = 7;
   int max_steps = 32;
   int seq_len = 3 * max_steps;
   int dModel = 32;
   int nHeads = 4;
   int d_ff = 64;
   int nLayers = 2;

   DecisionTransformer model(vocab_size, seq_len, dModel, nHeads, d_ff, nLayers);
   // Extract dataset
   vector<vector<PongStruct>> dataset = db.sequences;

   // shuffle support
   random_device rd;
   mt19937 gen(rd());

   // Training
   int nEpoches = 150;
   cout << "\n==== Training Decision Transformer Pong Game ====\n";

   for (int epoch = 0; epoch < nEpoches; epoch++)
   {
      shuffle(dataset.begin(), dataset.end(), gen);
      double loss = 0.0;
      for (int i = 0; i < dataset.size(); i++) {
	 vector<PongStruct>seq = dataset[i];
         loss += model.trainStep(seq, 0.01);
      }

      if (epoch % 2 == 0)
        cout << "Epoch " << epoch << " Loss: " << loss / dataset.size() << endl;
   }
   model.saveWeights( (char *) "weights.txt" );

   cout << "Weights saved in weights.txt!" << endl;

   return 0;
}

    Makefile:

    PROG    = testMain
#source codes
SRCS =  $(PROG).cpp
#substitute .cpp by .o to obtain object filenames
OBJS = $(SRCS:.cpp=.o) util.o  transGpt.o  decision.o

#$< evaluates to the target's dependencies,
#$@ evaluates to the target

$(PROG): $(OBJS)
        g++ -o $@ $(OBJS)

$(OBJS):
        g++ -c  -std=c++20 $*.cpp

clean:
        rm $(OBJS) $(PROG)

    Sample Output:

    Number of training sequences: 150

==== Training Decision Transformer Pong Game ====
Epoch 0 Loss: 0.424162
Epoch 4 Loss: 0.0209024
Epoch 8 Loss: 0.00973791
Epoch 12 Loss: 0.00544495
Epoch 16 Loss: 0.00372065
Epoch 20 Loss: 0.00274737
Epoch 24 Loss: 0.0021282
Epoch 28 Loss: 0.00171588
Epoch 32 Loss: 0.00142454
Epoch 36 Loss: 0.00121189
Epoch 40 Loss: 0.00105091
Epoch 44 Loss: 0.000922877
Epoch 48 Loss: 0.000822407
Epoch 52 Loss: 0.000742089
Epoch 56 Loss: 0.000675655
Epoch 60 Loss: 0.000619225
Epoch 64 Loss: 0.000571053
Epoch 68 Loss: 0.000529348
Epoch 72 Loss: 0.000493154
Epoch 76 Loss: 0.000461549
Epoch 80 Loss: 0.000433255
Epoch 84 Loss: 0.000408239
Epoch 88 Loss: 0.000385804
Epoch 92 Loss: 0.00036562
Epoch 96 Loss: 0.000347291
Epoch 100 Loss: 0.00033068
Epoch 104 Loss: 0.000315483
Epoch 108 Loss: 0.000301638
Epoch 112 Loss: 0.000288843
Epoch 116 Loss: 0.000277057
Epoch 120 Loss: 0.000266185
Epoch 124 Loss: 0.000256119
Epoch 128 Loss: 0.000246676
Epoch 132 Loss: 0.000237902
Epoch 136 Loss: 0.000229716
Epoch 140 Loss: 0.000222069
Epoch 144 Loss: 0.000214866
Epoch 148 Loss: 0.000208154

    Playing Pong with DT

    /*
 * pongDT.cpp -- Playing Pong with a Decision Transformer
 * http://forejune.co/cuda
 */

#include <GL/gl.h>
#include <GL/glut.h>
#include <string>
#include "util.h"
#include "transGpt.h"
#include "decision.h"

using namespace std;

// Game variables
double ballX = 0.0;	// horizontal position of ball
double ballY = 0.0;	// vertical position of ball

double ballDX = 0.15;	// change in X of ball
double ballDY = 0.10;	// change in Y of ball

double leftY = 0.0;	// left paddle position
double rightY = 0.0;	// rifht paddle position

int   action = STAY;

const double pW  = 0.5;	// paddle width
const double pH = 3.0;   // paddle height

double scoreLeft  = 0;
double scoreRight = 0;
double returnToGo = 11;
int maxTimeSteps = 150;

bool pause = false;

// model(vocab_size, seq_len, dModel, nHeads, d_ff, nLayers);
DecisionTransformer model(7, 3*maxTimeSteps, 32, 4, 64, 2);
vector<PongStruct> history;

void drawPaddle(double x, double y)
{
  // (x, y) is the lower left vertex coordinates
  glRectf(x, y, x+pW, y+pH);
}

// draw String
void drawString(double x, double y, const string &s)
{
    glRasterPos2f(x, y);

    for (int i = 0; i < s.length(); i++)
        glutBitmapCharacter(GLUT_BITMAP_HELVETICA_18, s[i]);
}

void drawBall(double x, double y)
{
  glPushMatrix();
  glTranslatef(x, y, 0);
  glutSolidSphere(0.5, 16, 16);
  glPopMatrix();
}

void resetBall() {
    ballX = 0; ballY = 0;
    ballDX = -ballDX;
    returnToGo = 11.0;      // Reset target return
    history.clear();
    PongStruct pong = {returnToGo, ballX, ballY, ballDX, ballDY, leftY, rightY, STAY};
    history.push_back(pong);
}

// Initialization
void init(void)
{
    glClearColor(1, 1, 1, 0);

    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluOrtho2D(-10, 10, -10, 10);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    // get weights of DecisionTransformer
    model.readWeights( (char *) "weights.txt" );
    resetBall();
}

// Draw scene
void display(void)
{
    glClear(GL_COLOR_BUFFER_BIT);

    double x, y;		//paddle lower left corner
    glColor3f(1, 0, 0); //red color

    // Left paddle
    x = -9.0;
    y = leftY - pH/2;
    drawPaddle(x, y);

    // Right paddle
    x = 8.5;
    y = rightY - pH / 2;
    drawPaddle(x, y);

    // Ball
    glColor3f(0, 1, 0);
    drawBall(ballX, ballY);

    // Score
    char str[40];
    sprintf(str,"%d   :   %d", (int)scoreLeft, (int)scoreRight);
    glColor3f(0, 0, 0);  // black color
    drawString(-1.0, 9.0, str);

    glutSwapBuffers();
}

void animate()
{
    if (pause)
        return;

    // Construct the current state
    // The action is not known yet, so use -1.
    PongStruct pong = {
        returnToGo,
        ballX,
        ballY,
        ballDX,
        ballDY,
        leftY,
        rightY,
        -1
    };

    history.push_back(pong);
    if (history.size() > maxTimeSteps)
      history.erase(history.begin());

    // Decision Transformer predicts the action
    int action = model.predictAction(history);

    // Store the predicted action in the history
    history.back().action = action;

    // Execute the action on the left paddle
    switch (action)
    {
        case UP:
            leftY += 0.08;
            break;

        case DOWN:
            leftY -= 0.08;
            break;

        case STAY:
            break;
    }

    // Keep left paddle inside the screen
    if (leftY > 10.0 - pH / 2)
        leftY = 10.0 - pH / 2;

    if (leftY < -10.0 + pH / 2)
        leftY = -10.0 + pH / 2;

    // Simple AI controls the right paddle
    if (ballY > rightY)
        rightY += 0.08;
    else
        rightY -= 0.08;

    // Keep right paddle inside the screen
    if (rightY > 10.0 - pH / 2)
        rightY = 10.0 - pH / 2;

    if (rightY < -10.0 + pH / 2)
        rightY = -10.0 + pH / 2;

    // Move the ball
    ballX += ballDX;
    ballY += ballDY;

    // Top/bottom collision
    if (ballY > 9.5)
    {
        ballY = 9.5;
        ballDY = -ballDY;
    } else if (ballY < -9.5)
    {
        ballY = -9.5;
        ballDY = -ballDY;
    }

    // Left paddle collision
    if (ballX <= -8.25 && ballY >= leftY - pH / 2 &&
      		ballY <= leftY + pH / 2 && ballDX < 0)
        ballDX = -ballDX;
    else if (ballX >= 8.25 && ballY >= rightY - pH / 2 &&
             	ballY <= rightY + pH / 2 && ballDX > 0)
      	ballDX = -ballDX;

    // Determine reward
    double reward = 0.0;
    if (ballX < -10)
    {
        // DT-controlled player missed
        scoreRight++;
        reward = -1.0;   // not used
        resetBall();
    }
    else if (ballX > 10)
    {
        // DT-controlled player scored
        scoreLeft++;
        reward = +1.0;   // not used
        resetBall();
    }

    // Update Return-To-Go
    returnToGo -= reward;

    glutPostRedisplay();
}

// Keyboard control
void keyboard(unsigned char key,int x, int y)
{
    switch(key)
    {
        case 27:
            exit(0);
            break;

        case 'r':	// reset
            scoreLeft = scoreRight = 0;
            resetBall();
            break;

	case 'p':	// toggles pause
	    pause = pause ? false : true;
	    break;
    }
}

// Visibility callback
void timerHandle ( int value )
{
   animate();
   glutPostRedisplay();
   // call timerHandle 25 ms later, 0 is passed to timerHandle, not used here
   glutTimerFunc (25, timerHandle, 0);
}

void visHandle( int visible )
{
   if (visible == GLUT_VISIBLE)
      timerHandle ( 0 );
   else
      ;
}

int main(int argc, char *argv[])
{
    glutInit(&argc, argv);

    glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB);

    glutInitWindowSize(500,500);
    glutCreateWindow("Pong Game");

    glutDisplayFunc(display);
    glutVisibilityFunc(visHandle);
    glutKeyboardFunc(keyboard);

    init();
    glutMainLoop();

    return 0;
}
